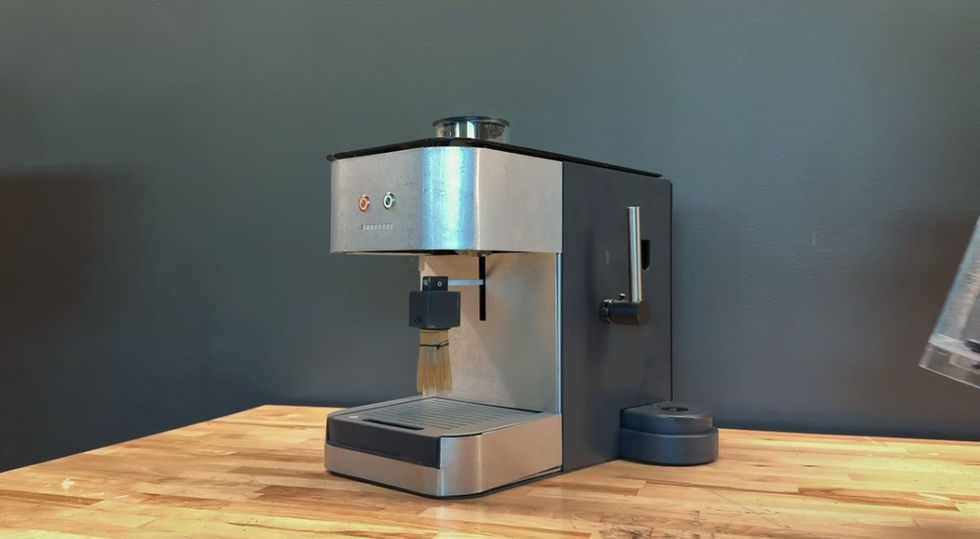

Our team of 10 engineers (5 mechanical, 5 electrical/computer) built Matcha Flow, a fully automated countertop matcha machine for a client. The machine heats water, dispenses matcha, and whisks the drink with one press of a button. I designed and built the whisking subsystem.


I used a scotch yoke mechanism: a stepper motor spins a disk whose pin drives a yoke slider, moving the whisk back and forth. I 3D printed the structural parts, using heat-set inserts for durable threaded connections and set screws to secure rotating parts to the shaft. I sourced the whisk, shaft, and motor off the shelf to stay within our $2,500 budget. The biggest challenge was fitting the mechanism into a compact body with the other subsystems, which I solved by coordinating motor placement and wire routing with the electrical team. Since the whisk should be removable, I added spring plungers to the whisk collar so it can be removed by hand for cleaning.

The subsystem whisks each drink for about 20 seconds to a frothy, traditional consistency, completing a fully hands-off cycle delivered to our client within budget. At our project showcase, the machine served about 100 cups of matcha without a single failure. This project strengthened my skills in mechanism design and taught me how to integrate mechanical and electrical subsystems into one reliable product.
